HIKMICRO Lynx PRO 19mm 35mK 384×288 12um Smart Thermal Monocular


HIKMICRO Lynx PRO 19mm 35mK 384×288 12um Smart Thermal Monocular

1 in stock

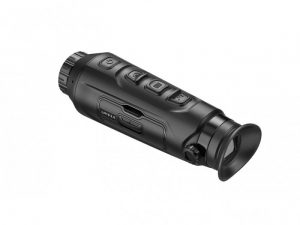

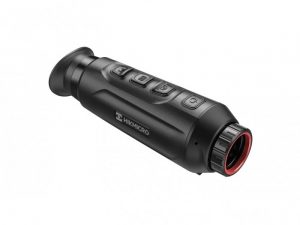

HIKMICRO Lynx PRO 19mm 35mK 384×288 12um Smart Thermal Monocular

The HIK Micro Lynx Pro 19mm bridges the gap between the 15mm and 35mm models by introducing many of the features found on the premium models into a more cost-effective package.

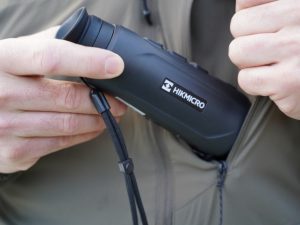

The Lynx Pro is built on the same compact chassis as the popular, pocket-sized 15mm model from HIK Micro but with the key additional feature of a focus ring around the objective lens. This allows you to precisely adjust the image to optimise your view over a wide range of distances.

The Lynx Pro is the first Thermal Monocular from HIK Micro to use a 384x288px 12µm sensor. This change in pixel pitch boosts your magnification up to 1.8x allowing a detection distance of 897m (Human size target) whilst also helping to reduce the cost of the unit.

HIK has also included the large screen from the 35mm models, producing a clear and easy-to-use view of your surroundings.

You will find all of the usual HIK Micro features; 4 colour profiles, digital magnification up to 8x and T-Vision App compatibility; Connect, Stream and Record to your smartphone.

Use the HIKMICRO Sight APP for connecting smartphone via Wi-Fi hotspot, HIKMICRO Sight supports live view, capture images, record video, share file to social media, album management, remote parameter setting, and firmware upgrade.


Sensor: 384×288px @ 12µm
Objective Lens (Focal Length): 19 mm
Detection Range (Human 1.8 x 0.5m): 897 m


Type: VOx Uncooled Focal Plane Arrays
Resolution, pixels: 384 × 288 px
Pixel pitch, µm: 12µm
Frame rate, Hz: 50 Hz
NETD: <35mK

Thermal Optics

Objective lens: F1.0
Magnification (Optical): 1.86x
Magnification (Digital): 1x, 2x, 4x, 8x
Field of view: 13.8° × 10.4° (H × V)


Type: 10 mm LCOS
Resolution, Pixels: 1280 x 960
Colour Palettes: Black Hot, White Hot, Red Hot, Fusion

Video Recorder

Built-in memory, Gb: 8 Gb

Additional Features

Hot Tracking: YES
WiFI hot spot: YES
T-Vision App support: YES


Degree of protection, IP code: IP67
Dust protection: Protected against dust ingress
Water protection: Protected against temporary submersion in water
Operating temperature range: -20 °C to 55 °C

Weight & Size

Dimensions, mm: 171 mm x 61 mm x 57 mm
Weight, kg: 0.31 kg

Power Supply

Operating time on battery (WiFi & Hot tracking disabled): 7.5 hours continuous running
Charging interface: USB-C
Battery capacity after 1000 cycles: 80%

Warranty Period

Main Unit: 3 Years
Battery: 2 Years
