EAGLEVISION 108 MOA adjustable Picatinny mount ZULUS, SYTONG, PARD 008S

£120.00

EAGLEVISION 108 MOA Windage, Elevation, Forward, Backward, adjustable Picatinny mount ZULUS, SYTONG, PARD 008S

3 in stock

Description

EAGLEVISION 108 MOA Windage, Elevation, Forward, Backward, adjustable Picatinny mount ZULUS, SYTONG, PARD 008S

Main benefits of this mount:

1. NV scope:

It can be directly fitted to the ZULUS ZHD520R, SYTONG vision scope.

It can be directly fitted to the PARD 008S vision scope

2. Adjustability:
FULLY ADJUSTABLE, FORWARD or BACKWARD , ELEVATION, WINDAGE, EYE RELIEF AND HEIGHT ADJUSTMENT, that allows the scope to move vertically and horizontally along a guided path, and lockable in different positions, using 3x or 4x or 5x screws on the side of this mount.

3. Combined with Scope cam:
This mount allows users to adjust their scope forward, backwards, or adjust it vertically to align the scope with their eye relief or eye level.
Users wishing to use their scope camera and record a session while shouldering their rifle, but the screen needs to be further to their eyes, or, for some applications they might require the camera to be closer to the eyes, such as pard/ Nightvision scopes etc.

4. Longer range shooting:
long range before running out of adjustment on the turrets
is the ability for users who need to reach out further but are restricted by their current mounting system.
By keeping the front mount at it’s lowest and elevating the rear mount to the highest point you can zero in your gun far beyond, without using the clicks on your turrets, hence keeping the optical centre of your scope intact.

5. Multiple rifles:
This system can be used to install scope mounts for the owner’s of multiple rifles who require to use one scope for all of their rigs by installing one Infinity mount to each rifle.
They can zero then just swap the scope between them, with little need for turret click adjustment.

6. Durability:
This product is robust enough to be installed on heavy recoil rifles, up to 25 caliber firearm.

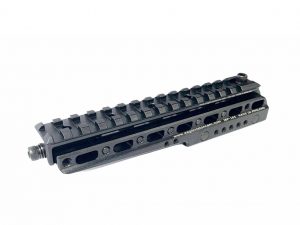

Technical information for the new ‘INFINITY’ mount:

Length: 170mm
Profile height from bottom of the mount to middle of the top picatinny rail, 21mm.
Total height: 30.30mm
Adjustable Height: 4.5mm
Weight: 225 grams



Product includes:

1x Infinity picatinny mount
3x Allen keys, (two different sizes)
2x Side screws
1x M5 spring screws
4x M5 Sytong attachment screws

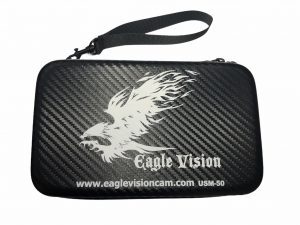

1x Waterproof case
6x Aluminium washers M6 to M5 adapter for Sytong
6x Stainless steel M6 washers M6 spacer for pard 008S
1x Lens Air Pump Dust Blower

Please note:
The washers must be placed between the screws and the mount.
The washers are flat and once they start being tightened their shape adjusts to the countersunk holes.



Torque calculation:
Adjustable side screws maximum torque,
53-71 inch-pound force to 6-8 NM Newton Meters.
Picatinny nuts maximum torque,
53-71 inch-pound force to 6-8 NM Newton Meters.
